Land Developing Implement
Product Description:
Tractor Mounted Land developing Implement

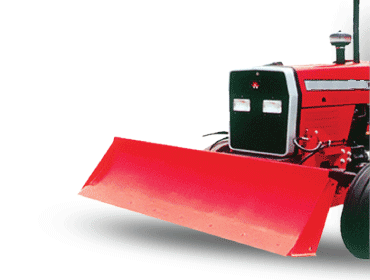

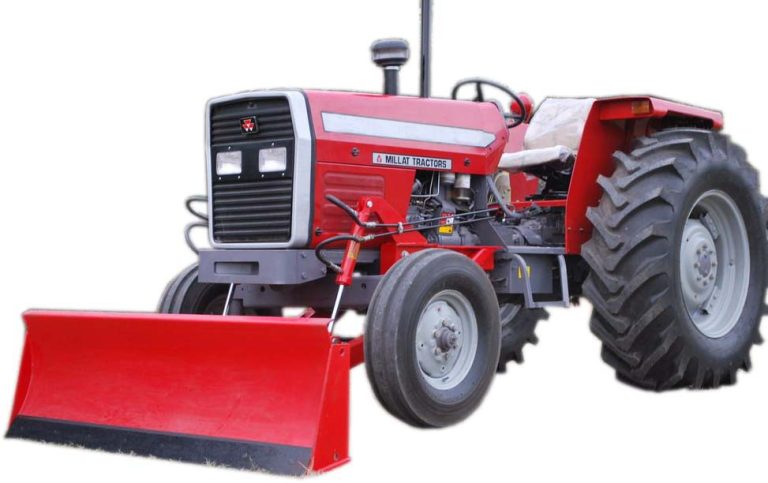

Front Blade is being attached with Tractor front. Usually, it is used to remove objects & materials from the ground like soil, stones & rocks. This blade can be used in agricultural lands, construction sites & infrastructure development sites.
✔ Hydraulic operated front blade
✔ Twin hydraulic cylinders – mounted on sub-frame of tractor
✔ Quick attachment/detachment
✔ Strong Mouldboard – reinforced on bank, sides and bottom.
✔ Reversible/replaceable cutting edge
✔ Suitable for heavy duty construction
✔ Imported spool valve
✔ Rigid steel piping (hydraulic cylinder)
Specifications
Blade Size
66” – 96”
Depth below ground
4”
Max lift
21”
Scraping Blade
6” x 12.7 MM
Blade Pitch
0 – 40 degree
Tractor Compatibility
50 Hp
