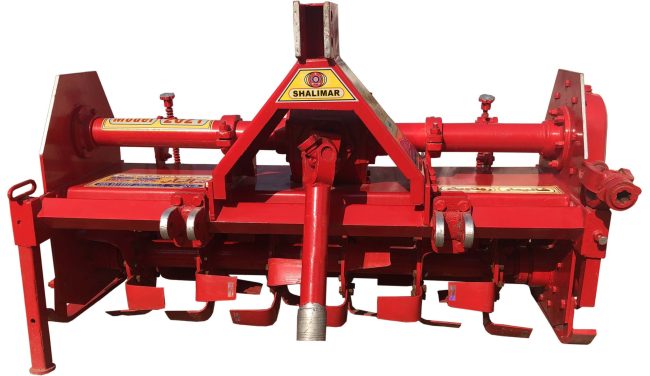

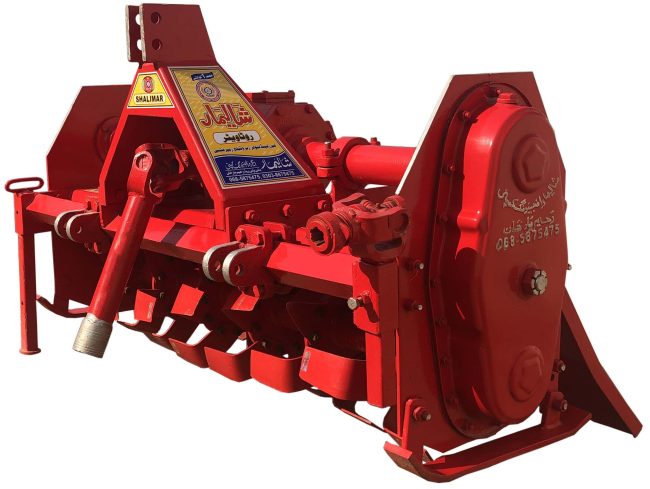

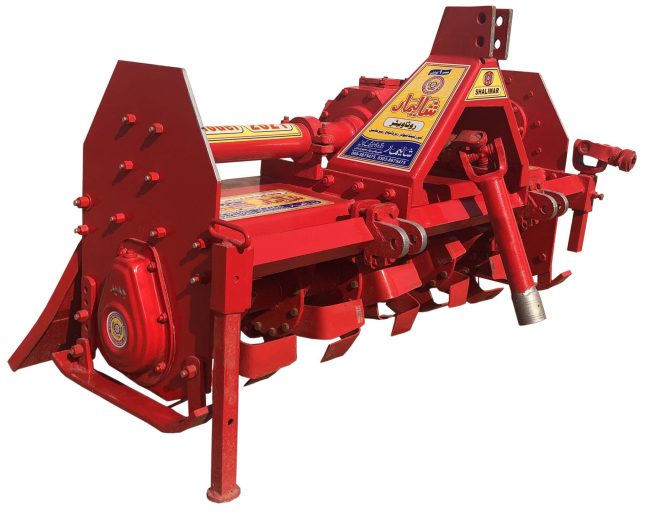

Rotary Tiller / Rotavator

Tractor Mounted Tillage
Product Description:
✔ Curved blades slice through the soil.
✔ Chop surface residue.
✔ Mix all material in the disturbed layer.
✔ Pulverize the soil and buries weeds and crop residue.
✔ Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
✔ Helical arrangement of the blades puts fewer loads on the tractor which makes tillage fast and economical.
✔ 6 Blades on each flange.
✔ Available in 6 to 9 flanges plough.
✔ 8 inches flange to flange distance.
✔ Heat treated blades.
✔ Durable against torque and stress.
✔ Smooth, efficient power transmission and superior durability.
✔ Grease fittings on driveline and rotary shaft.
✔ Can loosen & aerate soil up to 5 inches deep.
Specifications
Number of Cutters
36
42
48
54
Width
38’’
Length
67’’
75’’
82’’
90’’
Height
39’’
Weight (aprrox.)
445 KG
483 KG
493 KG
540 KG
Tractor Compatibility
50 HP
60 HP
75 HP
75 – 85 HP
